MATTRESS MACHINERY - Quality machines for efficient production



Technical Specification

Capacity: Up to 3 Mattresses per minute including compression

Film thickness: 80 - 150 micron

Printed film for brand promotion

Maximum roll width: upper 2500mm lower 2300mm

Maximum mattress/base size: 200 x 210 x 38 cm

Control: Motion controller

Power: 380 V. 3 Phase or customer specification

Air pressure: 6- Bar

Total area required : 3000 x 6000 mm

Full automatic operation capabilities and rapid rate of work

Servo controlled seal bars are self-adjusting for all bed sizes

High reliability of the sealing process with continuous heat seal bars

Compact design and compatible for integration with conveyors

Double seal bars, constant heat, PID controlled

Lower film magazine

Auto-recognition if product is a mattress or divan base

Applies polythene "boots" around end of mattress to save the need for cardboard corner protectors

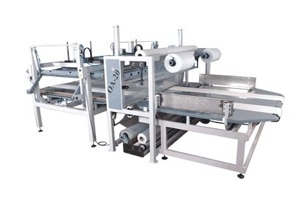

Polythene wrapping machine
CLICK TO WATCH VIDEOAutomatic_Polythene_Wrapping_files/Polythene%20Wrapping%20website.mp4
